NEW Metering Class Current Sensors with Extended Harmonic Performance
Metering Accuracy ElbowSense Ring-Style and NEW Slim Ring-Style sensors now offer flat frequency response through the 80th harmonic while offering up to 0.1% accuracy.
NEW LEA/LPIT Sensors
Low Energy Analog (LEA) voltage and current sensors are now available. Sensors feature RJ-45 connectors and are compatible with LEA-input versions of SEL-700 Series Relays and LPIT versions of Siemens SIPROTEC 5 Relays. A flexible Rogowski coil option is also available for both relay families.
Lindsey offers a complete range of current and voltage sensors for pad-mount, metal-clad, underground, live-front, oil-filled, SF6, and submersible applications.
- High accuracy voltage (0.5% standard, and 0.3% and 0.15% metering accuracy)
- High accuracy (1%, 0.3% and 0.15S) current measurements
- Voltage sensors for live-front, dead-front, oil-filled and SF6 insulated switchgear
- Low voltage analog/low-power instrument transformer (LEA/LPIT) voltage and current sensors meeting IEEE C37.92 and IEC 61869-10, -11, and – 13 standards
- Low voltage switchgear voltage sensors
- Split-core current sensor provides installation flexibility
- Ring-type current sensors for high accuracy applications
- Cast-in cable option for submersible applications
When automating legacy equipment without auxiliary power availability, Lindsey’s patented underground power supply installs quickly to provide a source of 12 VDC power for meters, radios, controls and RTUs.
200A Voltage Sensors
200A Voltage Sensors
Lindsey 200A voltage sensors are available in various accuracy versions at 15kV through 35kV in both IEEE 386-type elbow and T-body connectors for simple installation.
600/900A Voltage Sensors
600A Voltage Sensors

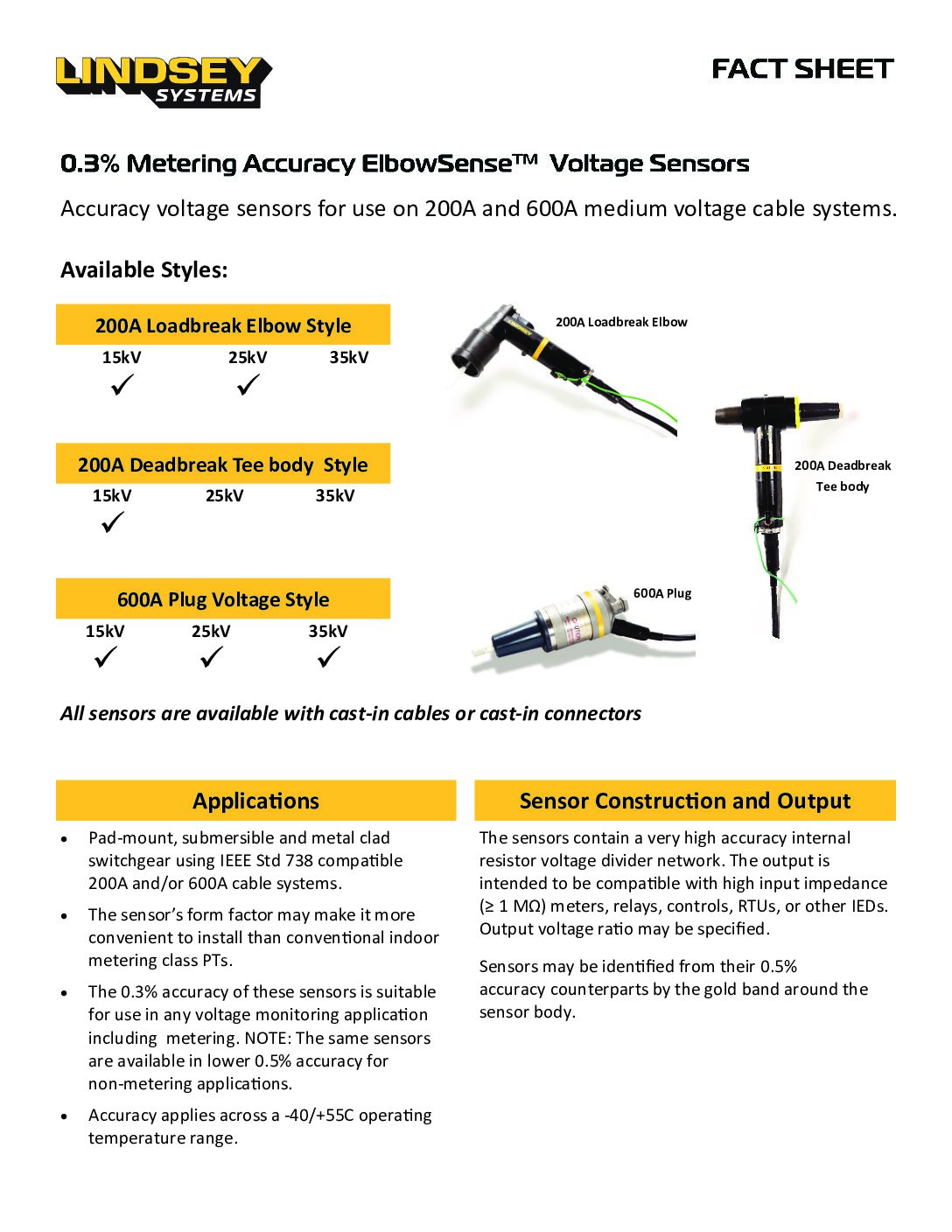

Elbowsense™ voltage plug sensors fit standard 600A and 900A T-body connectors. Available in 0.3% and 0.5% accuracy in 15, 25, and 35kV classes. Suitable for submersible applications.
Current Sensors
Current Sensors
600V current ring and split core sensors for underground applications. Neutral current sensor is ideal for sensing unbalances in MV capacitor banks.
METERING CLASS UNDERGROUND SENSORS
Metering Accuracy Sensors
Voltage and current sensors available in 0.3% or 0.15S accuracy versions for use in metering and revenue metering applications.
Live Front Voltage Sensor
Live Front Switchgear Voltage Sensor
Type LVS voltage sensors are for use in space limited live-front, air insulated switchgear, and are available in 0.3% and 0.5% accuracy versions.
Low Energy Analog (LEA) Sensors
LEA Sensors
Low energy analog voltage and current sensors are compatible with high impedance input relays utilizing RJ-45 connectors including SEL-700 Series and Siemens SIPROTEC S Series
Underground Power Supply
Underground Power Supply
Patented submersible power supply provides 12VDC harvested from feeder current, in a quickly-installed, magnetic mount cabinet. Back-up power provided via integral battery.
Oil and SF6 Voltage Sensors
Oil and SF6 Voltage Sensors
Type UOV voltage sensors are for use in MV oil-filled equipment to 35kV, and SF6 voltage sensors are available through 25kV. Both 0.3% and 0.5% versions available.
LV Switchgear Voltage Sensor
LV Switchgear Voltage Sensors
Type 9561 voltage sensors are available in 0.5% and 1% accuracy versions for use in LV switchgear applications up to 1000 VAC.
More on Underground Sensors
Full Line MV Sensor Brochure
Metering Accuracy Voltage Current Sensors for Underground
Sensor Cables Catalog
ElbowSense Current Ring Fact Sheet
Low Energy Analog LPIT Sensors for Siemens Relays
Low Energy Analog LEA Sensors for SEL Relays
NEW! Type LVS Live Front Voltage Sensor FACT SHEET

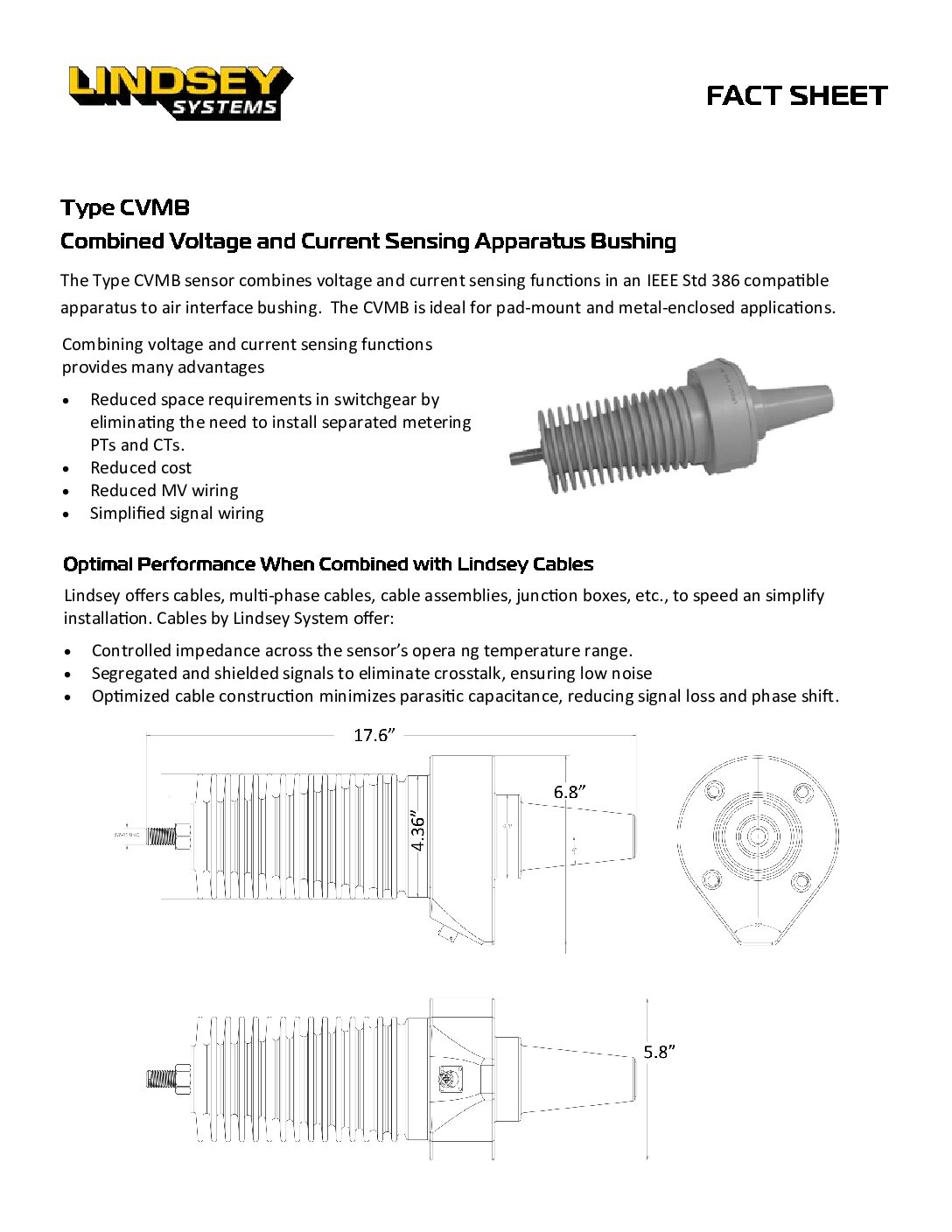

CVMB Current and Voltage Sensing Bushing
NEW! Type UOV Under Oil Voltage Sensor FACT SHEET
NEW! LV Switchgear Voltage Sensor FACT SHEET

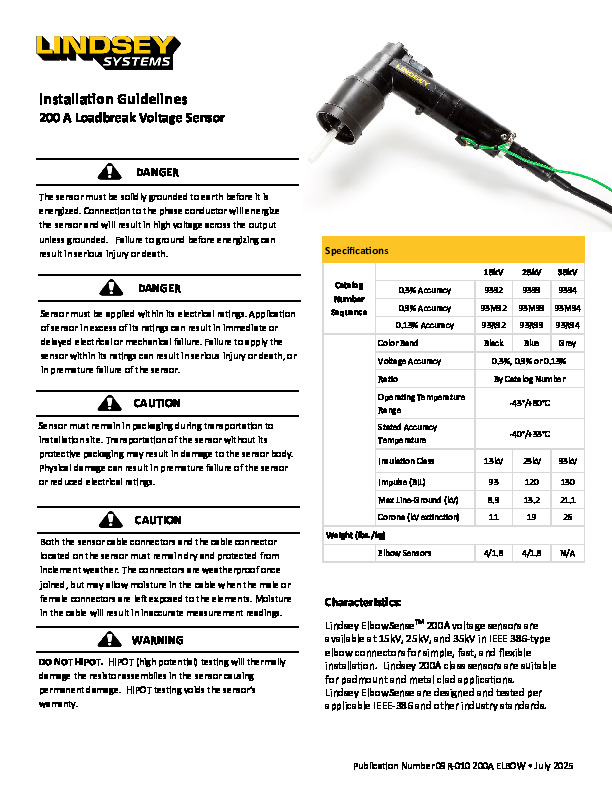

200A Loadbreak Voltage Elbow Sensor Installation Guidelines
